For aluminum rib boat and aluminum rib tender, the inflatable boat tube is mainly made of hyplaon or pvc fabric
Hypalon fabric:
ORCA® 820 Hypalon® (CSM/CR) ORCA® 828 Hypalon® (CSM/CR) ORCA® 866 Hypalon® (CSM/CR)
Technical specifications :
· Base fabric: High Tenacity Polyester 1100 dtex - 990deniers for ORCA 820 and ORCA 828. High Tenacity Polyester 1670 dtex - 1500 denier for ORCA 866.
· Induction: Chlorosulfonated polyethylene (CSM) / Polychloroprene (CR)
· Mass per unit area: >1000 g/m²/>1200 g/m²/>1400 g/m²
· Fabric width 145cm / Sold by linear meter
PVC fabric:
|
Material properties |
Value |
Unit |
Measuring Methods/Norm |
|
Total weight |
1450 |
g/m² |
EN ISO 2286-2 |
|
Tensile strength warp/weft |
3000 / 3000 |
N/50 mm |
EN ISO 1421/V1 |
|
Tear strength warp/weft |
250 / 250 |
N |
DIN 53363 |
|
Adhesion |
20 |
N/cm |
PA 09.03 (intern) |
|
Cold resistance |
-30 |
°C |
EN 1876-1 |
|
High Temperature |
+70 |
°C |
PA 07.04 (intern) |
|
Light fastness |
>6 |
Note, Value |
EN ISO 105 B02 |
|
Crack resistance |
100000 x |
|
DIN 53359 A |
|
Material |
PES |
|
DIN EN ISO 2076 |
|
Yarn count |
1100 |
|
DIN EN ISO 2060 |
|
Weave |
L 1/1 |
|
ISO 3572 |
Aluminum Rib boat hull power coating:
AkzoNobel Interpon is the world leader in powder coatings. We offer effective coatings solutions for a wide range of applications, including furniture, automotive, IT, appliance, the architectural market and general industry.
EVA pad:
Anti-UV and anti-aging top quality EVA pad for Colton aluminum RIB boat. Thickness is 6mm with intensity around 130-180 kg/m³.The color is stable and production process is strong. 3M adhesive is authorized. It could be in normal use after 3000 hours.

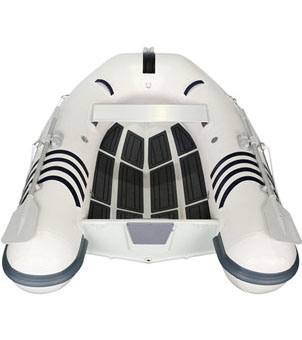

Ultralite(UL):
The small single hull dinghy sized of 240cm,260cm,280cm,300cm,330cm,360cm, we call Ultralite boat. Ultralite boats are made of 2.5mm thick powder coated marine grade aluminum for boat hull and 1100 Dtex pvc fabric or 1.0mm hypalon fabric for inflatable tube. The boat hull is single layer V hull with light weight.
The small double hull tender sized of 300cm,330cm,360cm and 380cm. we call Classic boat. Classic boats are made of 2.5mm thick powder coated marine grade aluminum for boat hull and 1100 Dtex pvc fabric or 1.0mm hypalon fabric for inflatable tube. Durable double deck aluminum hull coupled with full length keel guard and EVA pad.
Patrol (PA400-PA680):
The double hull yachts sized from 400cm to 470cm, we call small patrol boat. Small patrol boats are made of 3mm thick powder coated marine grade aluminum for boat hull. The double hull yachts sized from 520cm to 680cm, we call big patrol boat. Big patrol boats are made of 4mm thick powder coated marine grade aluminum for boat hull and they have built in fuel tank. Patrol boat has 1100 Dtex pvc fabric or 1.0mm hypalon fabric for inflatable tube.
Sport(SP330-SP470):
The small sport aluminum rib boat sized of 330cm,360cm, 390cm,420cm and 470cm we call small sport boat. Small sport boats are made of 3mm thick powder coated marine grade aluminum for boat hull and 1100 Dtex pvc fabric or 1.0mm hypalon fabric for inflatable tube. The boat has front locker holder and sleek boat design.
Sport(SP520-SP1150)::
The big sport aluminum rib boat sized of 520cm,560cm, 600cm,660cm,700cm,760cm,860cm,960cm,1150cm we call big sport boat. Big sport aluminum rib boat is made of 4mm or 5mm aluminum plate. The boat has complete accessories of fuel tank, middle console, middle seat, rear seat, aluminum arch with navigation lights, anchor holder, bilge pump, rear platform and etc.Sport aluminum rib boat has sporty and sleek boat design with superior quality.
